Precision CNC Parts Custom Machining with Oxidation: How Material Choice Affects The Final Result

Not all metals oxidize the same way. When you specify Precision CNC Parts Custom Machining followed by oxidation (anodizing), the base material you choose will directly determine the coating's appearance, thickness, durability, and even whether oxidation is possible at all.

This article explains how different materials respond to the oxidation process, helping you make the right material selection for your next custom CNC project.

1. Which Materials Can Be Oxidized?

First, a clear distinction: In industrial finishing, "oxidation" typically refers to anodizing—an electrochemical process that converts the surface of non-ferrous metals into a durable oxide layer.

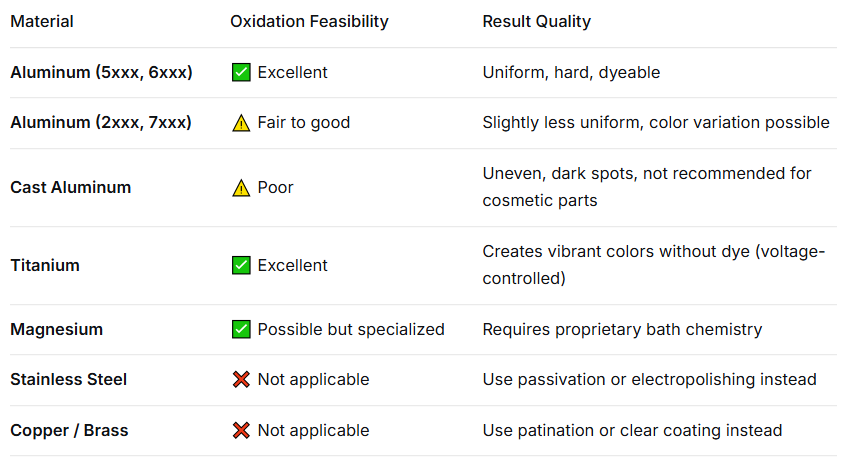

The most common materials for oxidation after CNC machining are:

Key takeaway: For standard clear or dyed anodizing, 6061 and 6063 aluminum alloys produce the most consistent, high-quality results.

2. Why Aluminum Alloys Perform Differently

Aluminum is not a single material. Different alloying elements (silicon, copper, magnesium, zinc) change how the oxide layer forms.

Best choice: 6061 and 6063 Aluminum

• Magnesium and silicon as primary alloying elements

• Forms a uniform, clear, hard oxide layer

• Accepts dyes evenly (black, red, blue, gold, etc.)

• Ideal for structural parts, enclosures, and consumer products

Acceptable but with caveats: 7075 Aluminum

• High zinc content (5-6%)

• Oxide layer can appear slightly yellowish or gray

• Color matching is more difficult

• Still suitable for high-strength applications (aerospace, defense)

Avoid for cosmetic oxidation: Cast Aluminum (e.g., A380)

• High silicon content (7-10%)

• Silicon does not anodize, leaving a gray, uneven surface

• Often results in black streaks or "smut"

• Use for hidden functional parts only, or specify painting instead

3. Titanium Oxidation: A Different Process

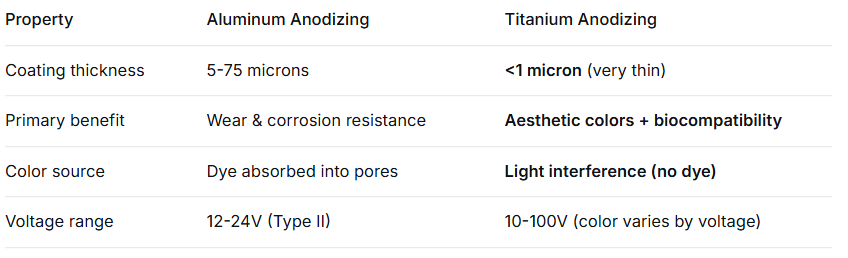

Titanium CNC parts can also undergo oxidation, but the result is fundamentally different.

Titanium oxidation is popular for medical implants, jewelry, and high-end automotive parts where vibrant, scratch-resistant colors are desired without added weight.

4. Common Material Mistakes and How to Avoid Them

Mistake #1: Specifying anodize for cast aluminum cosmetic parts

• Result: Uneven, blotchy finish. Customer rejects the batch.

• Solution: Change material to 6061 extruded bar stock, or switch to powder coating.

Mistake #2: Using 7075 aluminum for color-matched production runs

• Result: Visible color difference between batches (even with same dye).

• Solution: Qualify 7075 for natural (clear) anodize only, or accept looser color tolerances.

Mistake #3: Forgetting that hardcoat (Type III) changes dimensions significantly

• Result: Threaded holes become too tight; press-fit pins no longer fit.

• Solution: For 7075 with hardcoat, pre-machine holes 15-25 microns oversized per surface.

5. Material Selection Checklist for Oxidized CNC Parts

Before sending your RFQ, answer these three questions:

✅ Is the part cosmetic?

• Yes: Choose 6061 or 6063 aluminum. Avoid cast aluminum.

• No: 7075 or cast aluminum may be acceptable.

✅ What color is required?

• Clear / natural: Most alloys work (except cast).

• Deep black or bright colors: 6061 is safest. 7075 may show yellow tint.

✅ What environment will the part operate in?

• Salt spray / marine: 6061 with nickel acetate sealing (20+ micron coating).

• High wear (sliding contact): 7075 with Type III hardcoat (40-50 micron).

• Medical / implantable: Titanium oxidation only.

6. Real-World Example: Two Different Materials, Same Drawing

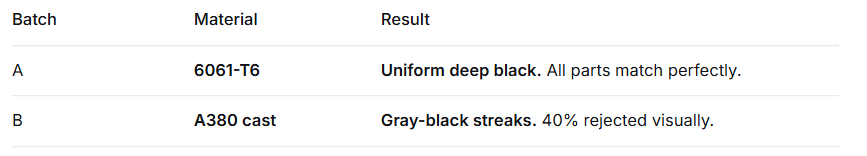

A customer orders 500 identical brackets with black anodize.

The cost of the raw material for Batch B was 30% lower. But after rework and rejected parts, the total cost was 65% higher than Batch A.

Conclusion: Material cost is only part of the equation. Process compatibility matters more.

Final Recommendation

When planning your next Precision CNC Parts Custom Machining project with oxidation finishing, start with material selection. 6061 aluminum is the safe, reliable choice for most applications. If you need higher strength (7075) or a decorative finish on titanium, understand the trade-offs upfront and communicate them to your CNC machining partner.

The best result comes from matching the material to the process—not forcing a process onto the wrong material.
