How Does 5-axis Precision CNC Machining Meet Micron-level Component Demands of AI Collaborative Robots?

How does 5-axis precision CNC machining meet micron-level component demands of AI collaborative robots?

AI collaborative robots require strict micron-level precision to realize accurate AI motion positioning, real-time force perception and safe human-machine interaction, and 5-axis precision CNC machining is the core manufacturing process to meet such high-standard component demands.

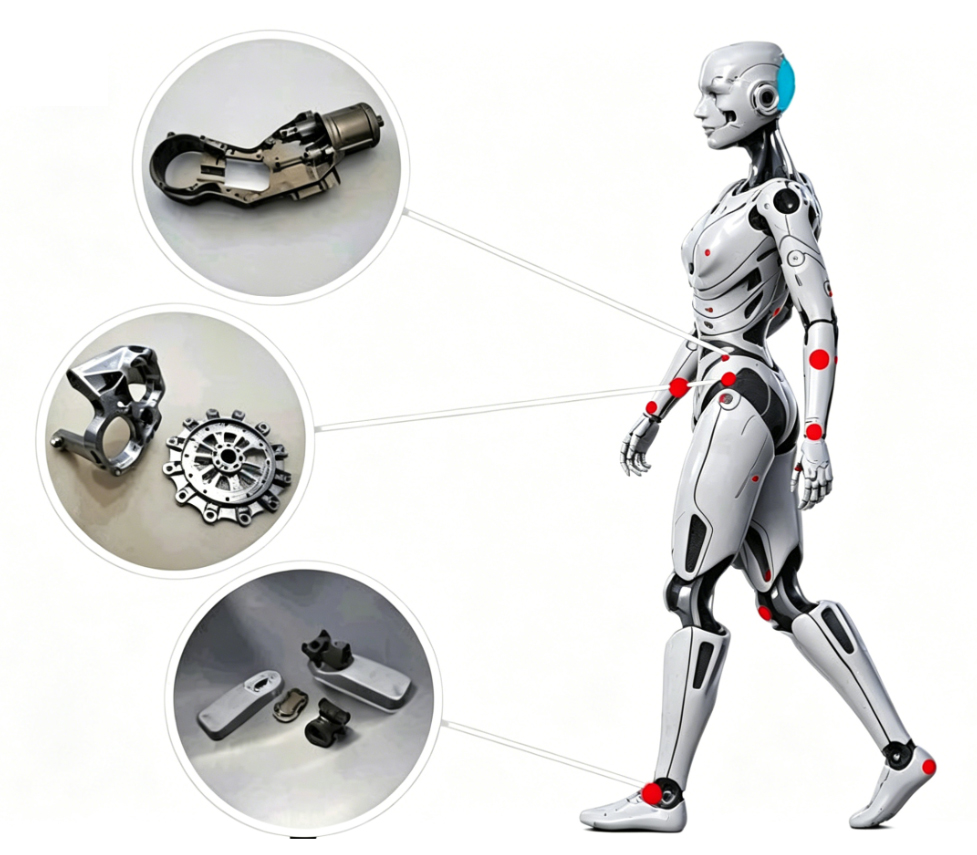

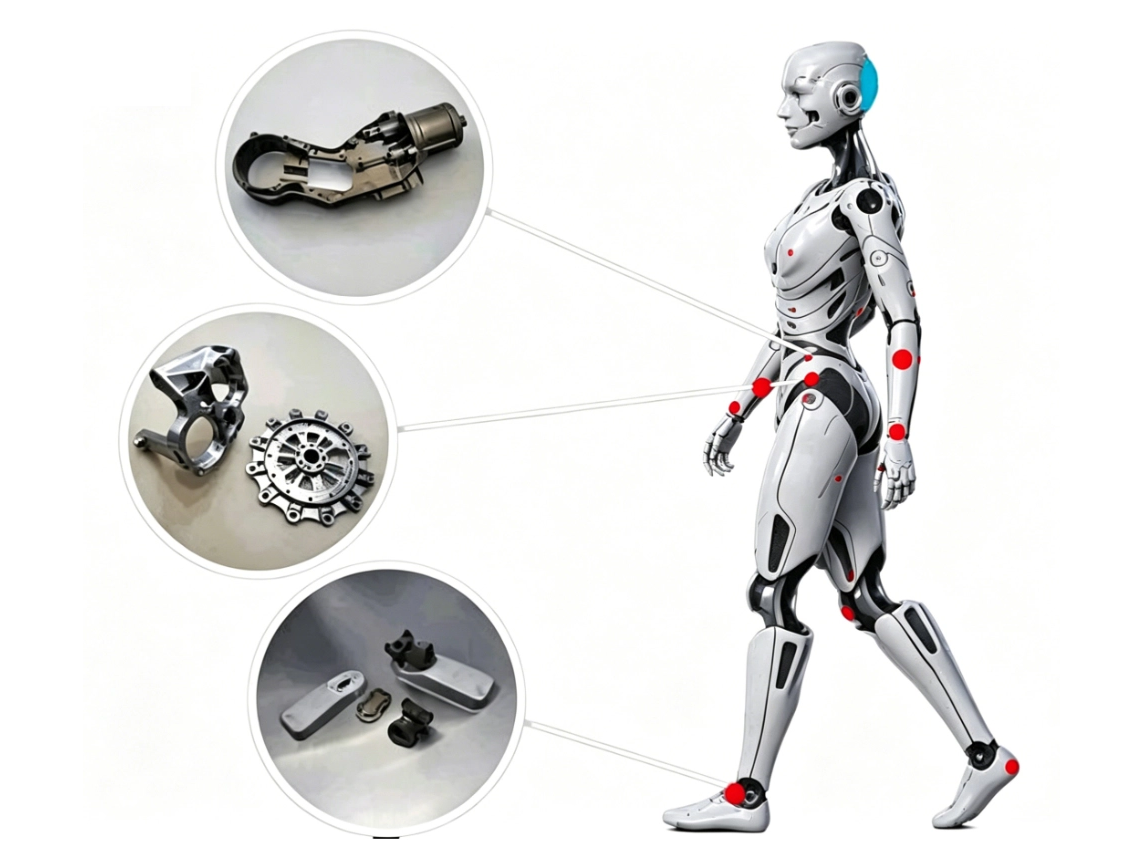

First, 5-axis CNC adopts one-time clamping and five-axis linkage processing. Unlike traditional 3-axis CNC that needs repeated re-clamping and causes cumulative positioning error over 0.02mm, it finishes all curved surfaces, inclined holes and undercut structures of robot joint housings, reducer brackets and sensor bases in one setup. It controls overall position tolerance within ±0.005mm, eliminating assembly deviation that affects AI algorithm operation.

Second, it solves thin-wall machining deformation for lightweight cobot parts. Most AI collaborative robot structural parts adopt 7075 aluminum alloy and titanium alloy thin-wall materials. 5-axis equipment adjusts tool angles dynamically to shorten tool extension, reduce cutting vibration and elastic deformation, achieving Ra0.2-Ra0.8 ultra-smooth surface finish. Low friction inside robot joints ensures torque sensors and AI visual modules collect error-free data.

Third, equipped with closed-loop thermal compensation and micro-error feedback system, high-end 5-axis machining centers keep batch machining repeatability within ±0.002mm. It matches the micron assembly clearance of harmonic reducers and RV reducers, avoiding robot jitter, motion backlash and positioning failure caused by part tolerance excess.

Fourth, 5-axis machining produces integrated monolithic robot parts instead of split splicing parts. It improves overall structural rigidity while reducing component weight, adapting to the high-frequency real-time adjustment of AI collaborative control systems, and supporting long-term stable operation of flexible collaborative robots.
