In the era of automotive lightweighting and consumer electronics miniaturization, a powerful manufacturing paradigm is emerging: the deep integration of die casting and precision CNC machining. This is far more than a simple sequence of two processes; it is a manufacturing revolution that transforms "near-net shape" into "finished product." When massive die casting machines produce complex components in minutes, and when 5-axis machining centers sculpt critical features with micron-level precision, modern manufacturing is redefining the very boundaries of efficiency and accuracy.

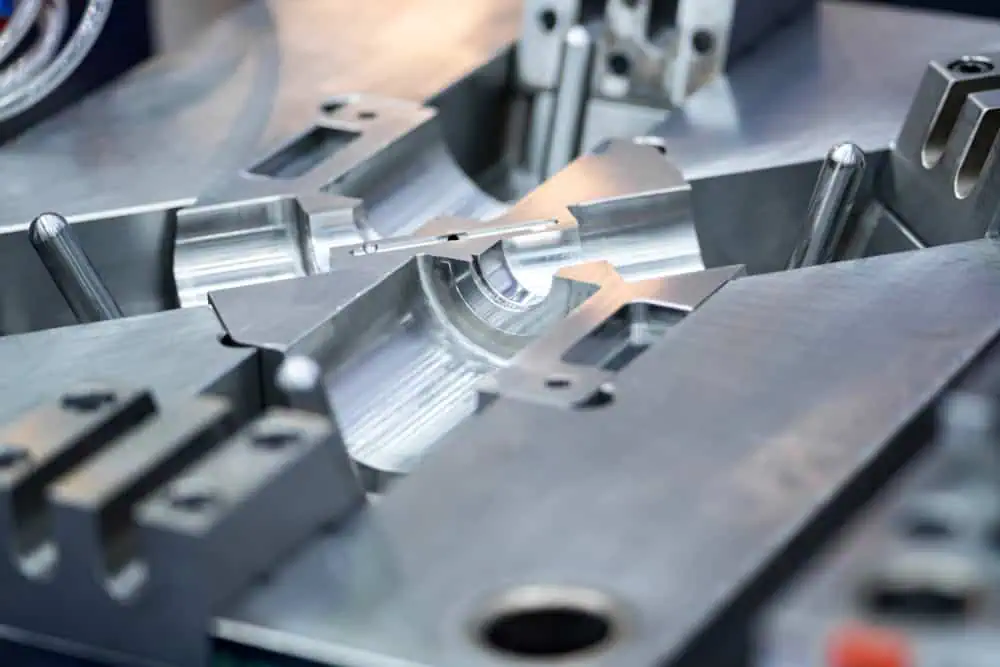

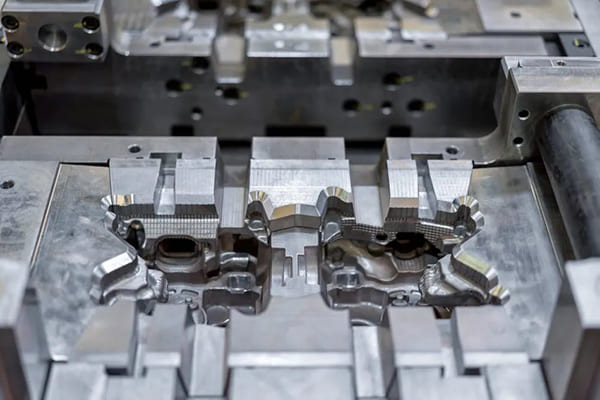

Die casting is a highly efficient metal forming process. Molten metal (typically aluminum, zinc, or magnesium alloys) is injected under high pressure into a reusable steel mold, enabling rapid production of complex-shaped parts and achieving "near-net shape"—where the part dimensions are very close to the final requirements, minimizing material waste and post-processing. Its core strengths lie in cost-effectiveness for mass production and structural integrity.
However, die casting is not a universal solution. Due to thermal contraction and inherent mold limitations, die-cast parts have inherent constraints in dimensional consistency. Typical tolerances for conventional die casting range from ±0.05mm to ±0.13mm. For critical features—such as bearing seats in engine housings, precision oil passages in hydraulic valves, or assembly interfaces in electronic products—this level of accuracy is simply insufficient.
This is where CNC machining takes center stage. As the pinnacle of subtractive manufacturing, CNC machining can finish critical features on castings with ±0.01mm accuracy or even higher. The combination creates a perfect manufacturing chain: Die casting delivers efficient forming; CNC machining delivers precision performance.
The application of CNC machining to die-cast parts extends far beyond simply removing flash or gates. It fulfills three critical missions:
Mission 1: Achieving Tight Tolerances
Critical mating surfaces, bearing bores, and sealing grooves on castings must be machined to meet design specifications. For example, the bearing seats in a transmission housing require micron-level precision to ensure accurate alignment with rotating shafts. The computer-controlled toolpath of a CNC machine eliminates human error, delivering repeatable accuracy even on complex geometries.
Mission 2: Creating Features Impossible to Cast Directly
Certain features—such as undercuts, threaded holes, or complex internal passages—are difficult or impossible to form directly in a die casting. CNC milling and drilling can add these elements after casting. For instance, a hydraulic valve body requires precisely machined fluid channels to prevent leakage under high pressure; the oil galleries in an automotive engine block are also typically finished via CNC.
Mission 3: Enhancing Surface Quality in Critical Areas
While die casting produces a surface with low porosity, CNC machining can further elevate the surface quality of functional regions. Polishing a pump body's sealing face or smoothing the mating interfaces of an electronic device enclosure ensures optimal performance. This dual-process approach reduces secondary finishing steps while maintaining cost-effectiveness.
In recent years, the explosive growth of the new energy vehicle industry has propelled the synergy of die casting and CNC to new heights. Giga-casting technology consolidates dozens or even hundreds of discrete parts in traditional automotive manufacturing into a single, large-scale casting, dramatically simplifying the production process. However, these large castings—such as rear floors, battery trays, and subframes—present unprecedented challenges for CNC equipment.
Case 1: From 300+ Parts to a Single Casting
LK Group's 6,000T to 16,000T mega-die casting units are replacing traditional "stamping + welding" production lines, enabling a revolution in "aluminum in, chassis out" integrated die casting. Taking the Zeekr 009's rear floor as an example, it consolidates over 300 traditional processes (stamping, welding, riveting) into a single casting, reducing chassis structural component production time from 2 hours to under 120 seconds and lowering tooling costs by 40%. However, this is just the beginning—these large castings still require precision post-machining on 5-axis CNC centers to become qualified final parts.
Case 2: Ultra-High-Speed 5-Axis Gantry Machining Centers
Shanghai Top-NC's ultra-high-speed 5-axis gantry machining center, the GMB2233-C, is specifically designed for the efficient processing of large NEV components like giga-cast rear floors and battery trays. Featuring lightweight carbon fiber components and linear motor drives on the X and Y axes, it achieves maximum traverse speeds of 120 m/min and accelerations of 1.5g. In a specific SUV rear floor application, cycle time per part was reduced from 1,320 seconds to 650 seconds, cutting costs by 15%.
Case 3: Five-Sided Machining in a Single Setup
LeanWerks' work on an aerospace-grade aluminum investment casting (a jet engine fuel filter housing) demonstrates the ultimate pursuit of precision in post-casting CNC. Through clever fixture design, touch-trigger probe measurement systems, and advanced cutting tool technology, the company performed five-sided machining of the casting in a single setup on a mill-turn center. This increased machining efficiency from 10 hours to under 2 hours per part—an improvement of over 80%.
CNC machining of die castings is not a simple application of standard metal cutting. Facing challenges like large thin-walled structures, complex internal cavities, and demanding tolerances, the industry is undergoing a series of technological innovations:
Ultra-High-Speed & Multi-Spindle Machining
For large giga-castings, dual-spindle gantry 5-axis machining centers are becoming powerful tools for efficiency. Gree's GA-FMB3020D high-speed dual 5-axis gantry machining center achieves rapid traverse speeds of 120 m/min and accelerations of 1.1g. Designed for large NEV components like front cabins, rear floors, and battery packs, its two spindles simultaneously machine symmetrical faces on a single part, effectively doubling throughput.
Thermal Distortion Control & Accuracy Retention
Thermal distortion is a major enemy of precision in casting machining. Ultra-high-speed gantry machining centers utilize carbon fiber moving components, which have a thermal expansion coefficient of only 1/10 that of steel, greatly enhancing machine thermal stability and accuracy retention. Concurrently, thermal compensation systems monitor critical dimensions during machining and automatically adjust tool positions to maintain accuracy.
Dedicated Fixtures & Probe Systems
Precise positioning is the prerequisite for machining raw castings with varying geometries. In the LeanWerks example, engineers designed a specialized fixture with a dovetail slide, allowing the workpiece to be repositioned and re-clamped within a limited Y-axis travel. A touch-trigger probe system precisely located the workpiece after repositioning, enabling subsequent toolpaths to be optimally fitted to the actual part position.
Integrating die casting and CNC machining within a single supplier chain is not just a matter of convenience; it delivers significant economic benefits:
Time Savings
Using an automotive heat sink as an example, the traditional process required 22 minutes per part (8 minutes casting + 4 minutes de-burring/transport + 3 minutes setup + 7 minutes machining). With an integrated die-casting + CNC workflow, the cycle time was reduced to 13 minutes—a 40% efficiency gain.
Cost Savings
For the same heat sink, the per-part cost dropped from $39.80 to $28.50, a reduction of 28%. For large-volume high-pressure die casting projects (like an automotive alternator housing), such integration can lower piece-part costs by 15-20%.
Quality Improvements
Single-setup machining eliminates error accumulation from multiple fixtures, reducing scrap rates. The near-net shape of castings reduces raw material usage, while in-house CNC machining avoids transport costs and mismatches in tolerances that lead to rejects.
The synergy between die casting and CNC is advancing towards deeper levels of intelligence:
Digital Twin-Driven Design Iteration
Companies like LK Group build full-machine digital twins, accelerating design validation through simulation. Extensive numerical simulation techniques ensure the structural integrity of mega-die casting equipment. In the future, digital twins will span the entire process, from optimizing casting parameters to planning CNC toolpaths.
AI-Powered Process Optimization
Industry roadmaps for the 2025-2030 period include advancing the integration of digital twins with AI for process optimization, targeting yields of ≥90% and further reducing energy consumption by 20%. AI will learn from millions of hours of casting and machining data to automatically recommend optimal process parameters.
Multi-Material Hybrid Forming
Exploring multi-material forming of magnesium/aluminum composite structures to provide even more extreme lightweight solutions for industries like new energy vehicles and aerospace.
The synergy of die casting and CNC machining represents the perfect balance of efficiency and precision in modern manufacturing. When die casting shapes complex components in minutes, and CNC machining gives them life with micron-level accuracy, their combination creates a manufacturing miracle where 1+1 > 2.
For product engineers and procurement leaders, partnering with a supplier capable of providing integrated die-casting + CNC services is not just a convenience—it's a strategic advantage. By consolidating casting and machining into a unified workflow, such partners can help you reduce lead times, minimize defects, simplify your supply chain, and accelerate your product's time to market.
Could your next complex component benefit from this perfect synergy?
Our engineering team is proficient in the full-chain solution, from die casting mold design and process simulation to precision CNC machining. We are dedicated to delivering a true "formed once, set up once, finished part once" manufacturing experience for clients in automotive, consumer electronics, industrial equipment, and beyond.
