CNC machining has revolutionized the manufacturing of motorcycle components, offering unparalleled precision, strength, and design flexibility. Whether for racing motorcycles, custom builds, or replacement parts, CNC technology ensures that each component meets exact specifications while minimizing human error and reducing production time.
From engine components and transmission parts to custom handlebars and wheels, CNC machining has become essential for both OEM manufacturers and custom bike builders.
Motorcycle transmissions require exceptional precision to ensure smooth power delivery and reliable performance. CNC lathes and milling machines are extensively used to produce input and output shafts made from case-hardening motorsport steel alloy, gear blanks that are precision-machined before heat treatment, and dog rings and collars critical for close-ratio gearboxes.
Nova Racing Transmissions, a leading motorcycle transmission specialist, uses DN Solutions Lynx lathes to machine these components. Their process includes soft turning operations to reduce diameter and length, gun drilling with high-pressure coolant for deep through-bores, hobbing for precision splines, heat treatment outsourced to specialists, and hard finish turning.

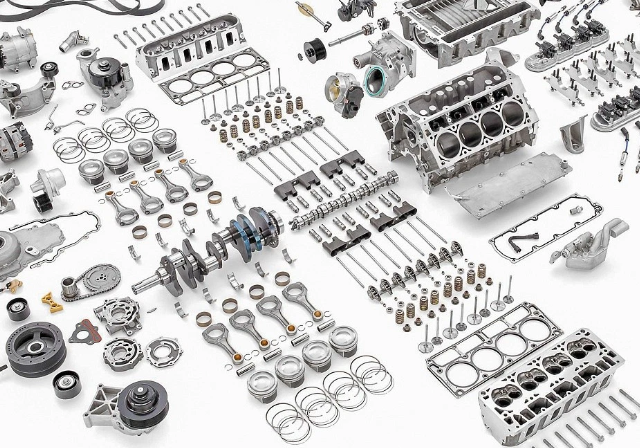

CNC machining produces critical engine parts that must withstand extreme pressures and temperatures. These include cylinder heads with complex geometries requiring multi-axis milling, pistons precision-machined for optimal combustion chamber sealing, and valve covers with custom designs and intricate detailing.

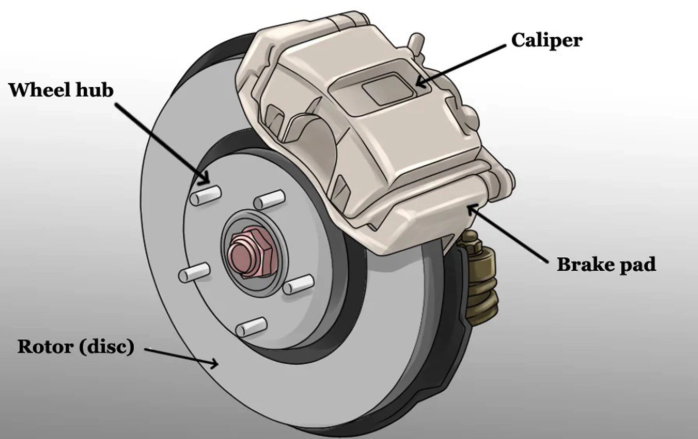

Safety-critical components demand the highest precision. Brake calipers, master cylinders, and clutch levers are all produced using CNC machining. These parts are designed for strength and durability, reducing the need for frequent replacements.

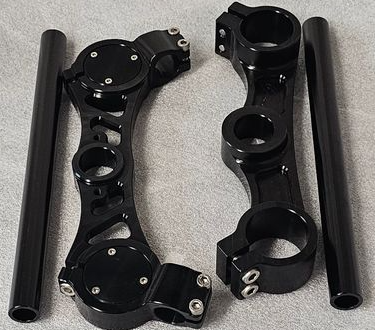

CNC machining enables ergonomic customization. Handlebars can be tailored to rider posture, foot pegs can feature optimal grip patterns, and custom controls can be designed to improve comfort and control.
CNC turning is essential for cylindrical components like wheel hubs, requiring high symmetry and tight tolerances. Aluminum wheels machined via CNC can be up to 30 percent lighter than steel counterparts, directly improving handling and acceleration.
Many suspension parts can be machined from billet aluminum or titanium, offering strength-to-weight ratios superior to cast or forged components.

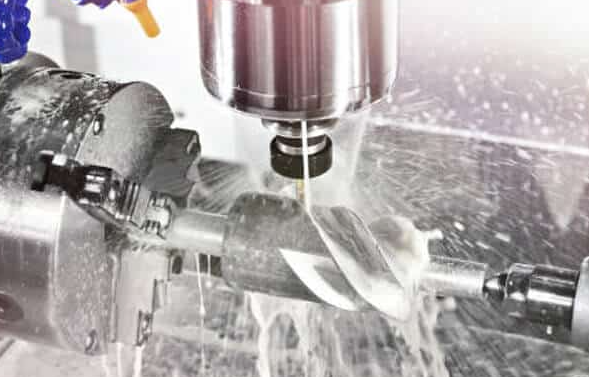

CNC milling uses rotating cutting tools along multiple axes to remove material and create complex shapes. This process is ideal for engine components with intricate geometries, custom brackets and mounts, and parts requiring 3+1-axis or full 5-axis machining.
Dunbar Race Engineering uses a Hurco VM10i 3-axis VMC with a 4th-axis rotary table to produce prototype and small-batch motorcycle parts, achieving tolerances as tight as ±10 micrometres.

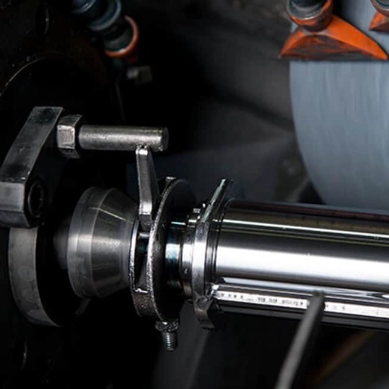

CNC turning is essential for cylindrical and symmetrical components such as wheel hubs, exhaust pipes, shafts and axles, as well as spacers and bushings. Modern CNC lathes often include live tooling capabilities, allowing milling, drilling, and tapping operations to be performed in a single setup.
For transmission shafts, gun drilling creates long, narrow through-bores with high depth-to-diameter ratios. High-pressure coolant of up to 20 bar is used to maintain chip evacuation and prevent overheating.
Many CNC machining services also offer reverse engineering for vintage or obsolete parts. Dunbar Race Engineering specializes in remanufacturing components for historic and classic racing motorcycles that are no longer available from original suppliers.
Aluminum alloys such as 6061 and 7075 are lightweight and offer a good strength-to-weight ratio, making them ideal for wheels, frames, engine cases, and custom parts.
Steel alloys, particularly case-hardening grades are durable and wear-resistant, commonly used for transmission shafts and gears.
Titanium provides a very high strength-to-weight ratio, being up to 45 percent lighter than steel, while also offering excellent corrosion resistance. It is used in high-performance frames, connecting rods, and exhaust systems.
Stainless steel is corrosion-resistant and durable, suitable for fasteners, brackets, and exhaust components.
Engineering plastics such as POM and PEEK offer low friction and lightweight properties, making them ideal for cable guides, bushings, and non-structural components.
CNC machining ensures tight tolerances, typically within ±0.001 inches or better, which directly impacts performance. A custom CNC-machined sprocket guarantees smooth power transfer from engine to wheel, improving both acceleration and top speed.
Lightweight components are critical for motorcycle agility. CNC machining allows manufacturers to remove material only where necessary, creating parts that are both strong and light. Key benefits include up to 30 percent weight reduction for aluminum wheels compared to steel, up to 45 percent weight reduction for titanium components compared to steel, improved fuel efficiency, and reduced rider fatigue.
CNC-machined components can be designed with aerodynamics in mind. Custom exhaust systems reduce backpressure and can increase horsepower by up to 5 percent. Body panels and fairings can reduce drag by up to 10 percent. Smoother airflow improves both fuel efficiency and top speed.
For minimum wall thickness, metals should be 0.8 to 1.5 millimetres while plastics require 1.0 to 2.0 millimetres. Internal corner radii should be at least 0.5 to 1.0 millimetres, with the largest possible radius preferred. The maximum hole depth-to-diameter ratio for standard tools is 4:1. Threads should use standard sizes where possible. General tolerances are ±0.1 millimetre, while precision applications can achieve ±0.01 millimetre. Undercuts should be avoided or designed for specialized tooling.
CNC machining is ideal for one-off prototypes for testing new designs, small batches of 1 to 10 units for custom parts and race spares, and medium volumes of 10 to 500 units for replacement parts and aftermarket components.
Dunbar Race Engineering initially outsourced production but brought manufacturing in-house to increase flexibility, reduce lead times, and ensure consistent quality.
CAD/CAM software like CAMWorks and SprutCAM X are used to generate toolpaths for complex motorcycle parts. These systems support multi-axis machining, simulation to verify toolpaths before cutting, and post-processing for specific machine controllers.
In superbike racing, close-ratio gearbox components and lightweight wheels require tight tolerances and high-strength materials. For motocross, suspension components, foot pegs, and hubs demand impact resistance and durability. Custom and chopper builds focus on handlebars, grips, engine covers, and fuel caps with aesthetic finishes and personalization. Vintage and classic motorcycles often need remanufactured obsolete parts through reverse engineering with period-correct appearance. OEM production of engine cases and transmission components requires repeatability and cost-effectiveness at volume.
CNC machining offers no tooling cost as no molds are required, making it ideal for prototyping and small batches. It achieves high precision with tolerances down to ±10 micrometres. The process provides material versatility, with the same machine capable of processing aluminum, steel, titanium, and plastics. Fast turnaround means simple parts can be produced in hours and complex assemblies in days. The excellent surface finish reduces post-processing requirements.
